Beer Keg Filling Washing Machine

Brewery banner

Beer Keg Filling Washing Machine

Beer Keg Filling Washing Machine

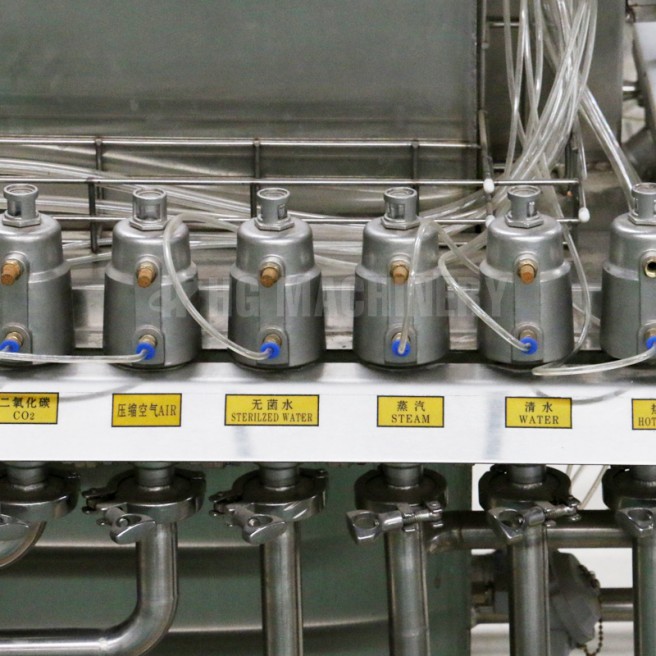

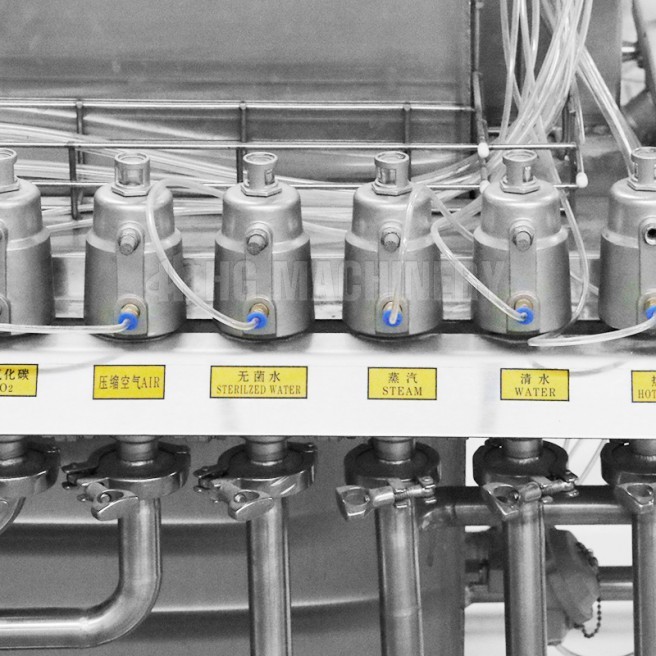

Angle Seat ValveAngle Seat Valve

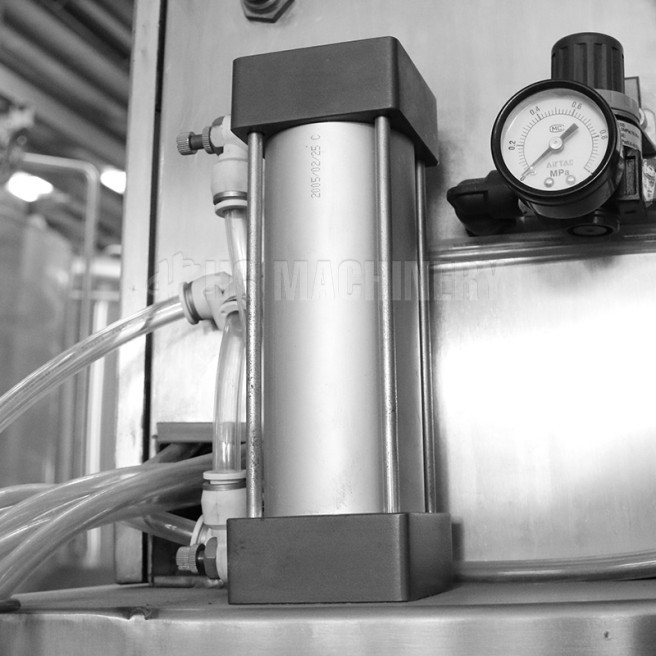

CylinderCylinder

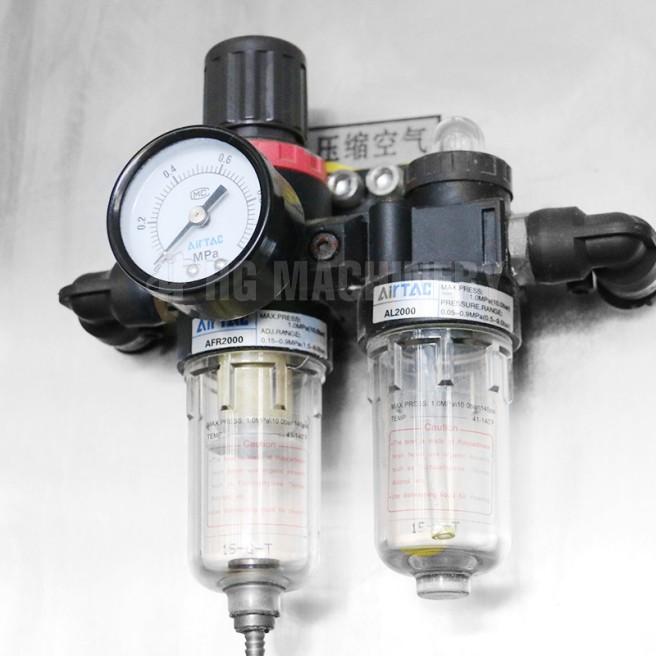

PneumaticPneumatic

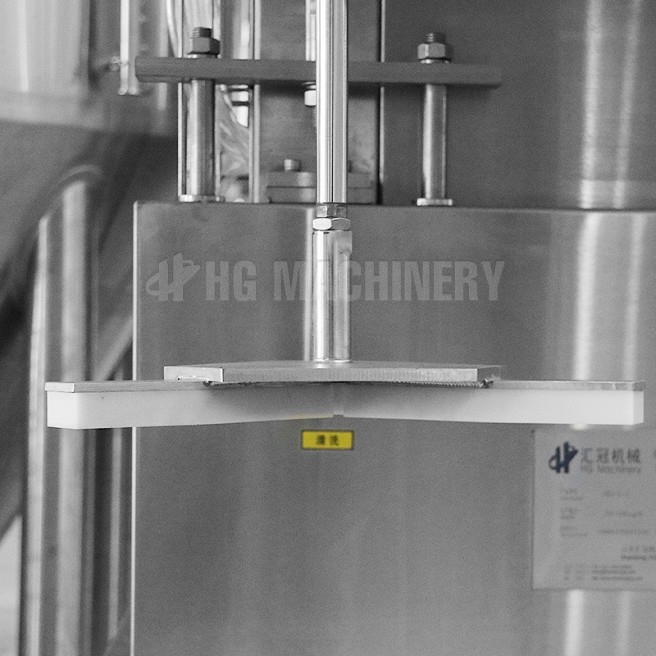

Press FramePress Frame

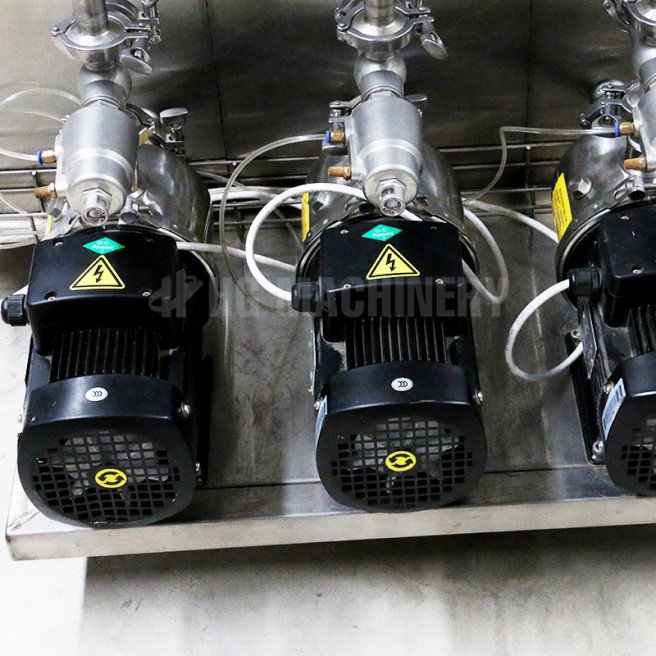

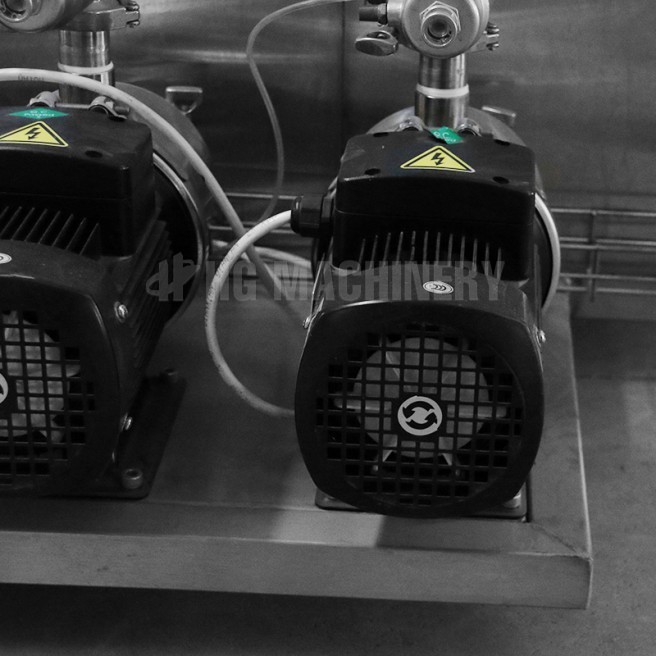

PumpPump

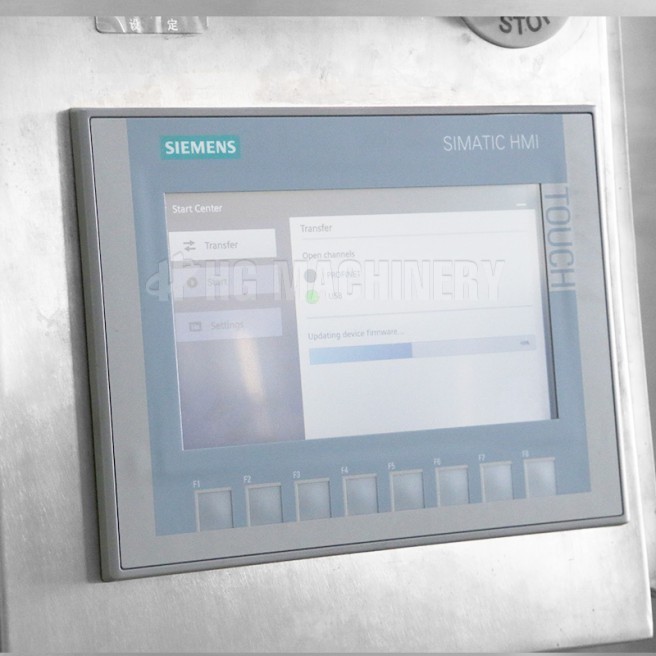

Siemens Touch ScreenSiemens Touch Screen

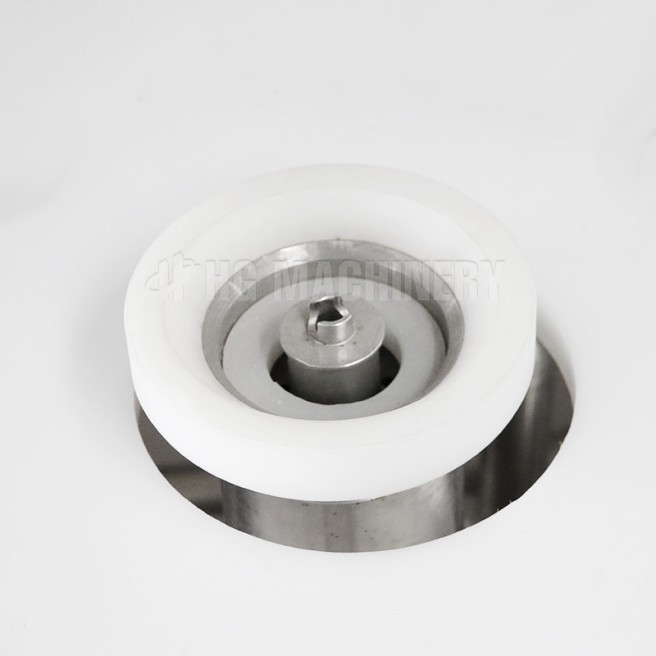

Washing HeadWashing Head

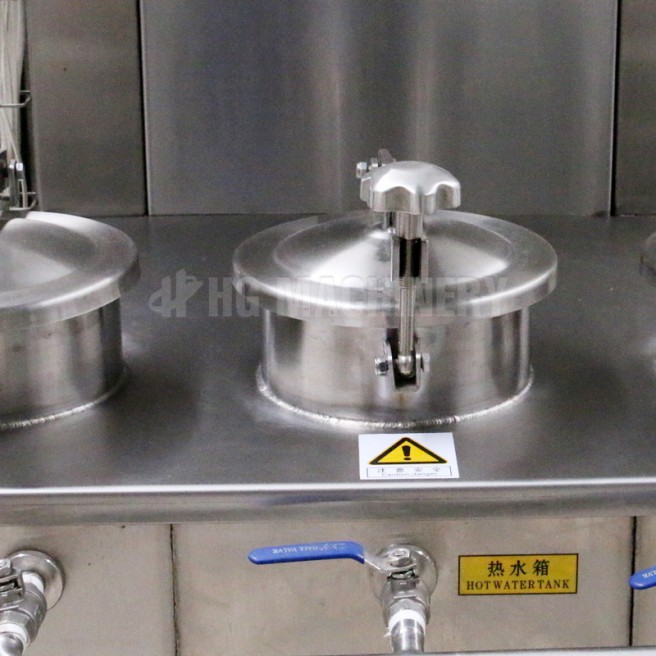

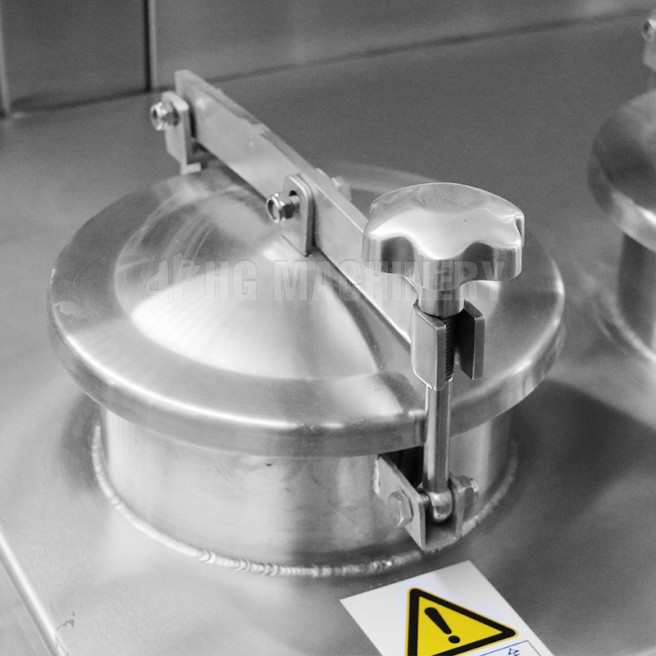

Water Tank CoverWater Tank Cover
Beer Keg Filling Washing Machine Angle Seat Valve Cylinder Pneumatic Press Frame Pump Siemens Touch Screen Washing Head Water Tank Cover

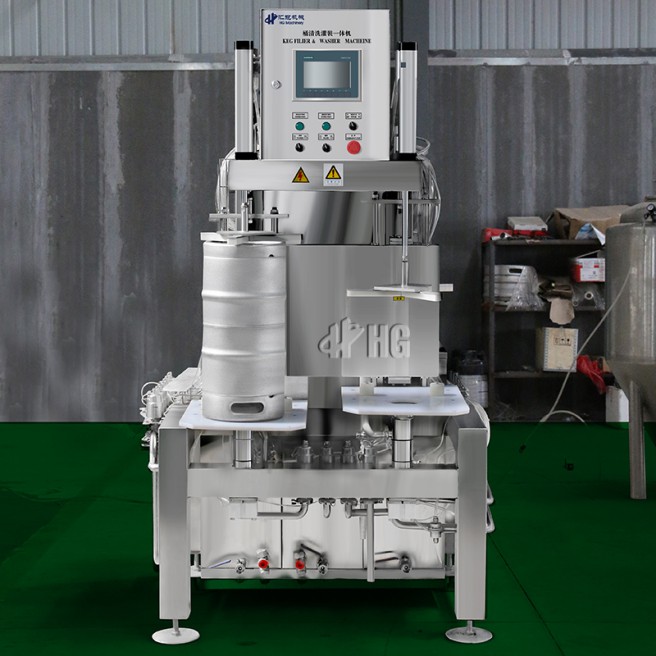

Beer Keg Filling Washing Machine is designed for stainless steel kegs of washing, sterilizing and filling. The process of washing, sterilizing, filling is finished automatically. The temperature of hot water and alkali is controlled automatically. Filling volume is controlled by high-speed positioning filling skill. it has the function of auto washing of pipeline. It isa high-quality products consist of washing and filling.

VIDEO

FEATURES

This equipment is designed for stainless steel kegs of washing, sterilizing and filling. The process of washing, sterilizing, filling is finished automatically. The temperature of hot water and alkali is controlled automatically. Filling volume is controlled by high-speed positioning filling skill. it has the function of auto washing of pipeline. It isa high-quality products consist of washing and filling.

The control unit adopts the Germany's Siemens’s control system to control the process. All control parameters (time value) can be adjustment without stopping the equipment. This equipment is easily to be operated. Different kegs can be washed and filled byselecting the switch settings and replacing the cleaning head.

PARAMETERS

Filling accuracy 5%
Keg size 5L-50L
Capacity 50-70kegs/hour
Compressed air pressure>0.4Mpa
Wince resource pressure 0.25~0.4Mpa
Power Customized
Equipment size 1600mm x1200mm x2100mm
Filling/washing nozzle One

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
