300CPH(5CPM) Semi-Auto Beer Canning Machine

Brewery banner

300CPH(5CPM) Semi-Auto Beer Canning Machine

300CPH(5CPM) Semi-Auto Beer Canning Machine

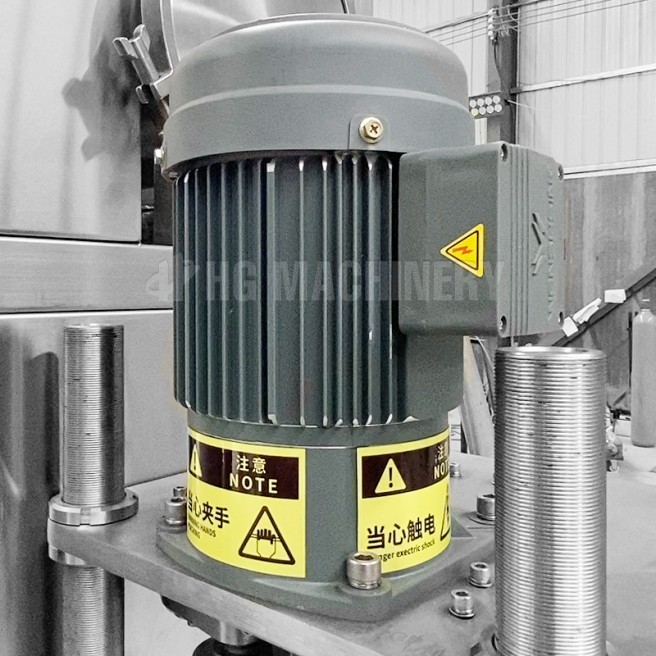

ABB MotorABB Motor

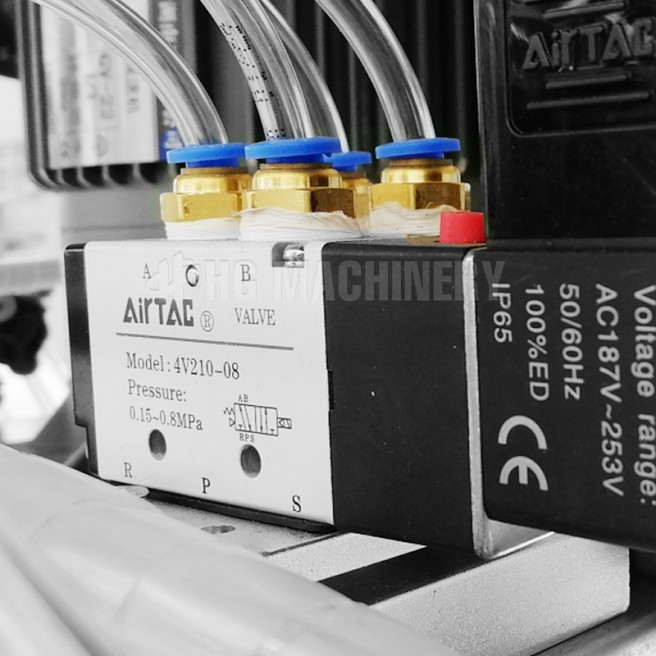

Electrical ComponentsElectrical Components

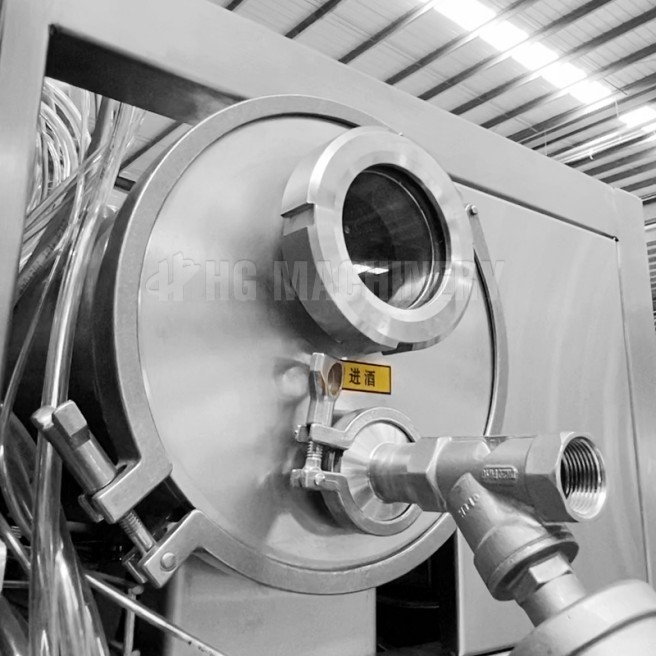

Filling BowlFilling Bowl

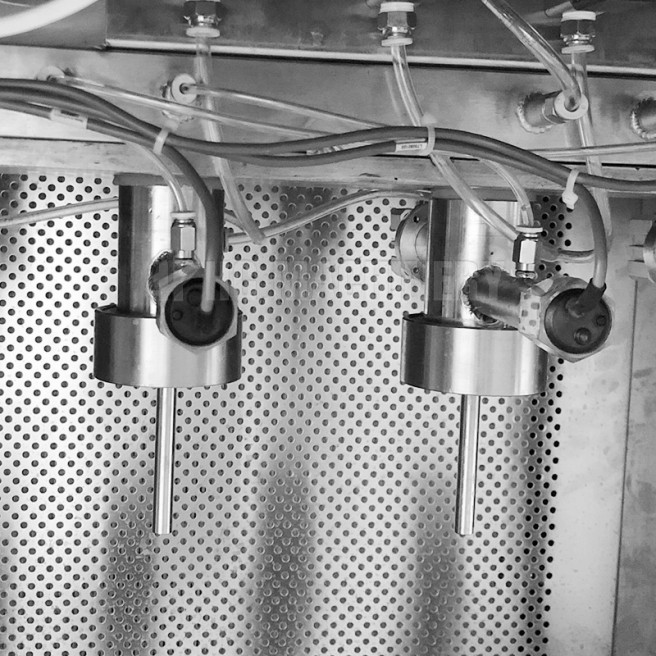

Filling HeadFilling Head

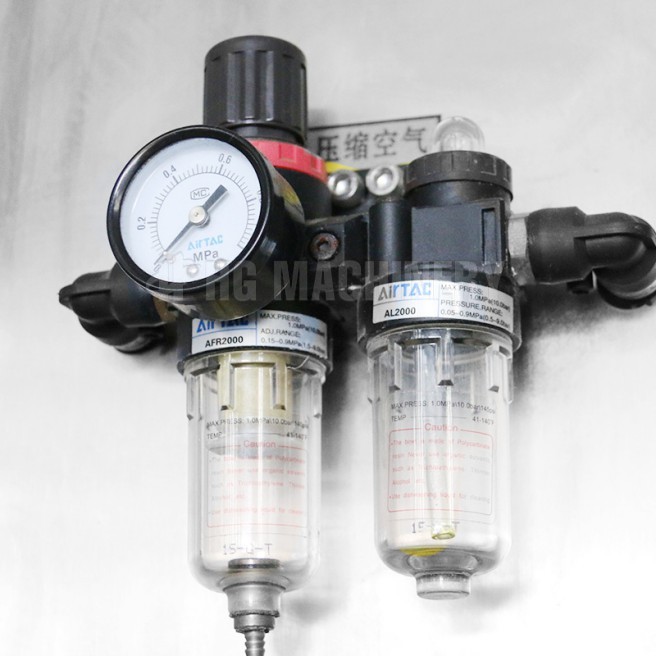

PneumaticPneumatic

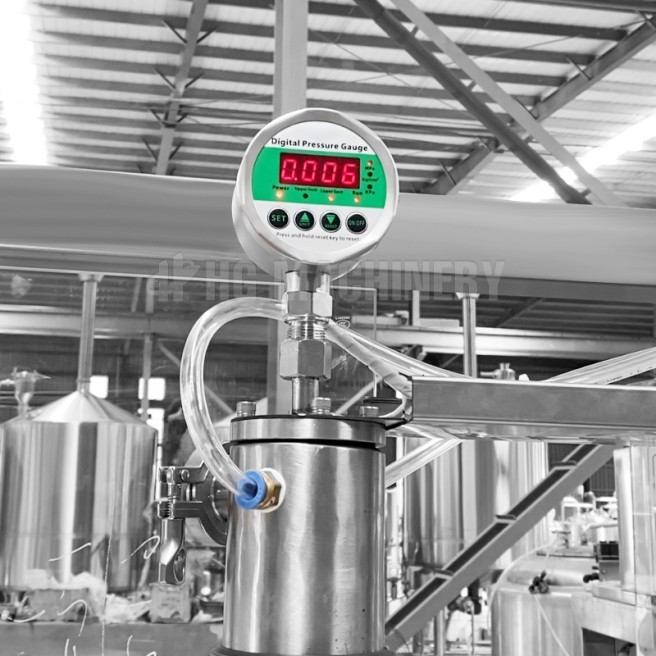

Pressure GaugePressure Gauge

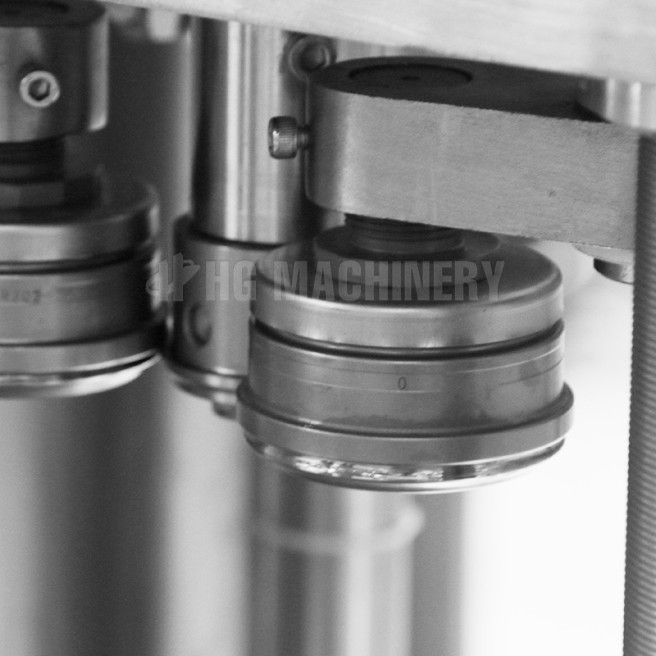

Sealing HeadSealing Head

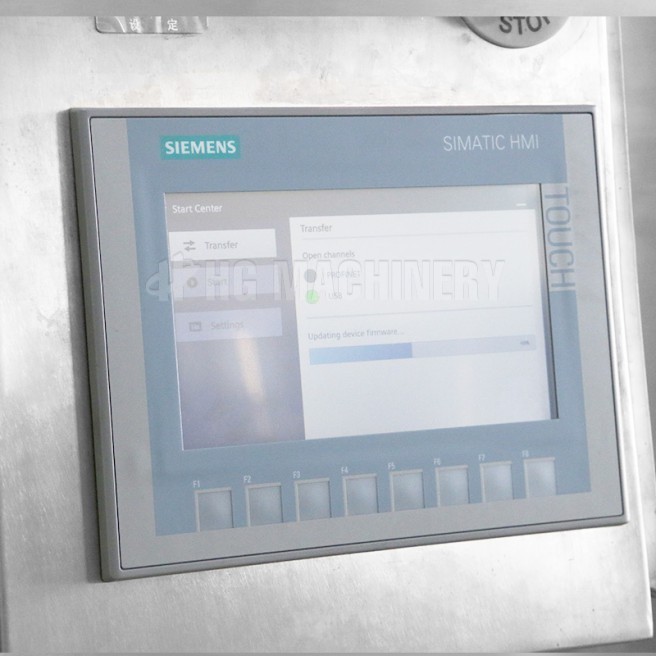

Siemens Touch ScreenSiemens Touch Screen
300CPH(5CPM) Semi-Auto Beer Canning Machine ABB Motor Electrical Components Filling Bowl Filling Head Pneumatic Pressure Gauge Sealing Head Siemens Touch Screen

300CPH(5CPM) Semi-Auto Beer Canning Machine is specifically designed to beer filling and include double pre evacuation as a standard feature on some models to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation. The combination of high quality robust machine construction along with close attention to the needs of clean in place CIP ensures our beer fillers deliver efficient reliable canning production. As well as filling a wide range of all beer types, such as lagers, ales, stouts, unfiltered wheat beers and can conditioned beers HG's beer fillers can also be used for filling cider, hard cider, sparkling wines as well as carbonated soft drinks.

VIDEO

FEATURES

  • Isobaric filling principle and filling valve adopts high precision mechanical valve.
  • Fast filling speed, high precision in liquid level.
  • Siemens automatic controlling system, only starts to filling when there is a can, otherwise it will stop filling and no broken cans.
  • The filling process is cleaner and pure due to its twice evacuation of cans, and more stable because of isobaric filling operation.
  • Specifically designed to beer filling and include double pre evacuation as a standard feature to ensure ultra low dissolved oxygen DO’s are maintained during the filling operation.
  • Filling cylinder braces use worm-gear box going up and down to satisfy cans of different height.
  • Float switches in the filling cylinder ensure a smooth liquid inlet.
  • Capping: we replaced the pneumatic cover with a mechanical cover, the quality and stability of the gland are improved.
  • All-mechanical transmission: basically reaches zero failure rate.
  • Compact conformation, Easy installation,use & maintenance.
  • Conveyor can feeding technology instead of the feeding screw and conveyer chain. Easily change the can change over parts.
  • The blocking canneck technology to convey cans. It does not adjust the height of equipment when the type of can is changed. According to the diameter of can, you could change corresponding nylon elements such as arc slipper guide, thumb wheel etc.
  • Those stainless steel can nips of wash are designed especially, they don't touch thread position of phialine, in order to avoid the second
  • pollution.
  • All of parts directly contacted with material are adopted with food stage stainless steel 304 without dead angle. So they can be cleaned easily.
  • High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.

PARAMETERS

Outline size 1700*1100*2200mm
Power 0.37kw
Capacity 100-300CPH
Can type H:120-180mm, D:66mm
Filling type Isobaric pressure
Beer pressure 0.15-0.2Mpa
Air pressure 0.4-0.6Mpa
CO2 pressure 0.15-0.2Mpa
Net weight 360kg

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
