2000L Fermentation Tank

Brewery banner

2000L Fermentation Tank

2000L Fermentation Tank
Breath ValveBreath Valve
InsideInside
Mechanical PressureMechanical Pressure

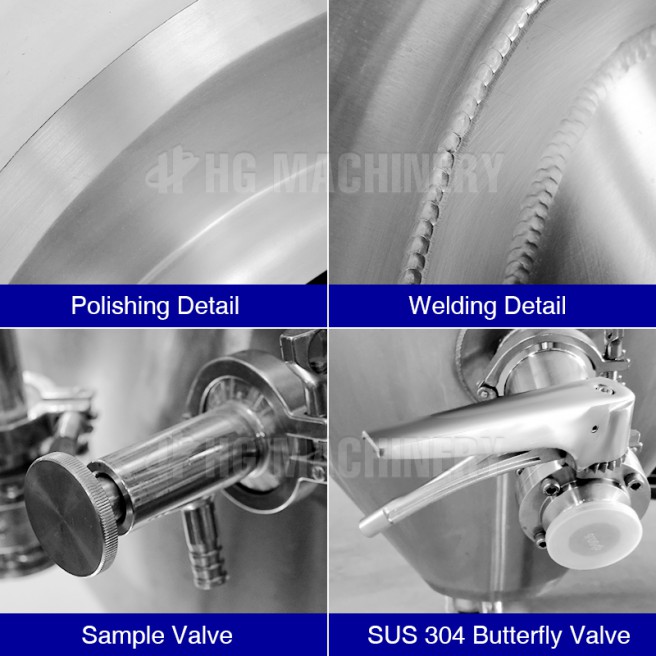

Polishing DetailPolishing Detail
Racking ArmRacking Arm
Sample ValveSample Valve
SUS 304 Butterfly ValveSUS 304 Butterfly Valve
Temperature GaugeTemperature Gauge
2000L Fermentation Tank Breath Valve Inside Mechanical Pressure Polishing Detail Racking Arm Sample Valve SUS 304 Butterfly Valve Temperature Gauge

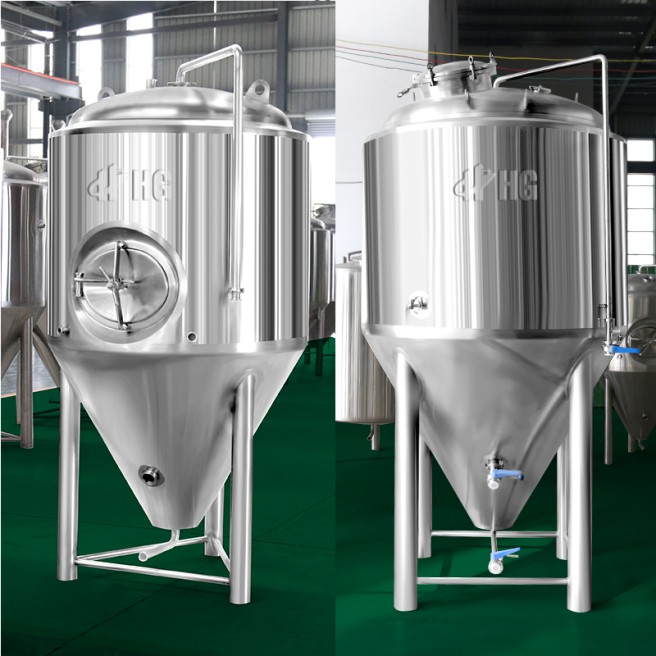

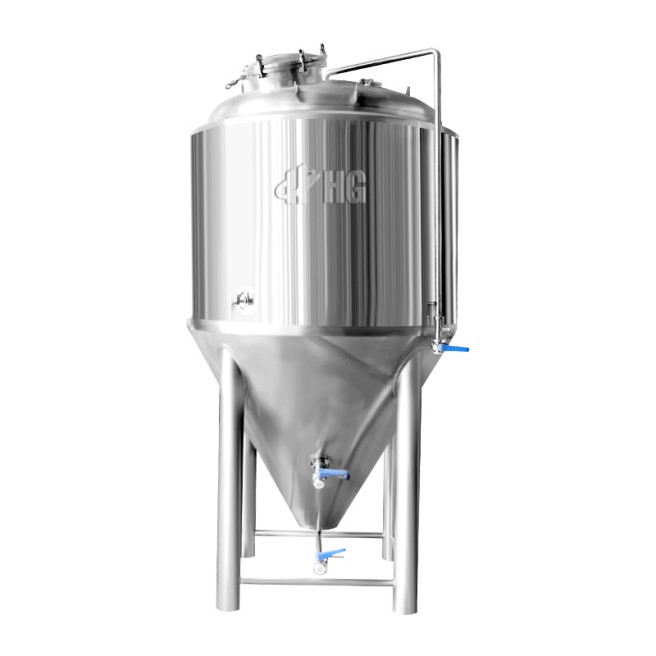

2000L Fermentation Tank is a Modular cylindrically-conical tank consist of a base tank (BT) and expansion accessories (valves, fittings, armatures, tools …) By choosing and using various types of expansion accessories, it is possible to assemble the tank in several configurations that are optimal for the desired part of the production process. Accessories for expansion of the modular cylindrically-conical tanks: manhole, butterfly valve, Sample valve, Safety valve, Venting valve, Thermometer socket, Manometer, Filling level indicator

VIDEO

FEATURES

Our tanks are designed to promote optimal fermentation and/or carbonation.

  • Made of stainless food steel DIN 1.4301 (AISI 304)
  • Standardized dimensions and equipment, or according to individual customer requirements
  • Classic design, PUR insulation, double stainless steel jacket, water (or glycol) cooling duplicators
  • Accurate temperature control and reliable CIP are requirements to ensure a quality finished product
  • Fermenters offered with side rotating racking arms or standpipe design plus hop ports.
  • An extra tri-clamp fitting can be added for a carbonation stone if desired.
  • Cone angles can be changed to suit customer requirements.
  • Adjustable pressure valve for controlled fermentation – Overpressure setting mechanism with a glycerine manometer
  • PUR insulation – polyurethane insulation with thickness according to the size of the tank and the target environment
  • Guaranteed inner surface roughness : Ra < 0.8 μm or less (grinded surfaces) / Ra < 0.5 μm or less (polished surfaces), according to customer´s requirement
  • Service door (manhole) on the top cone or on cylinder part, according to customer requirements
  • Pure-beverage output armature with a butterfly valve for pure beverage (beer, wine, cider) output
  • Sample valve – cleanable and sanitizable sampling cock for collection product samples
  • Safety valve – double-acting overpressure and vaccum protection safety valve
  • Venting valve – Dedicated venting valve for safety draining of the tank and for accurate measuring of current pressure in the tank using manometer (it ensures properly function of the manometer when the shower ball shower is blocked with a foam)
  • Thermometer socket – welded socket for inserting of thermosensor or thermometer
  • Manometer – It is included in the set of the adjustable pressure valve. Made of stainless steel, with glycerine inside.
  • Filling level indicator – Sanitizable glass or plastic pipe for visualisation height level of the beverage product in the tank

PARAMETERS

Item Specification
Gross capacity 2500L
Useful capacity 2000L
Thickness Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
Material Stainless steel 304
Cooling way Dimple jacket plate
Cleaning way CIP in situ cleaning, with rotary spray cleaning ball
Insulation Polyurethane-thickness: 80mm
Accessories Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
