200L Bright Beer Tank

Brewery banner

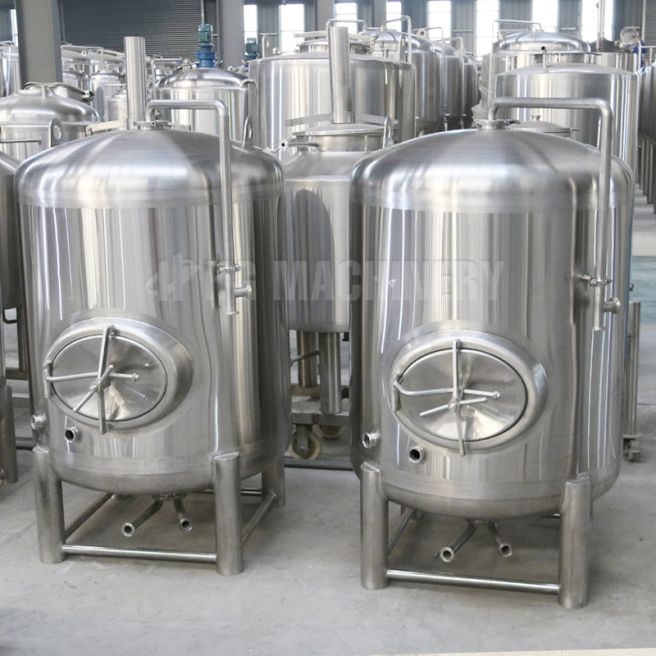

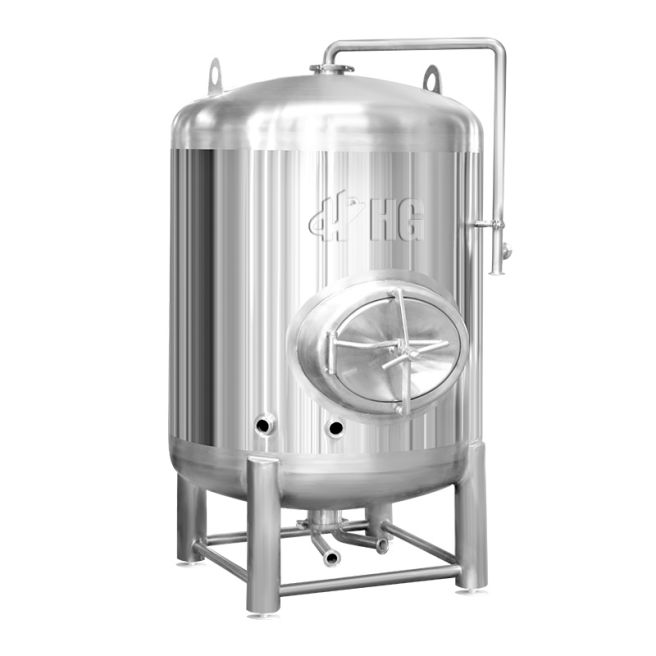

200L Bright Beer Tank

200L Bright Beer Tank
InsideInside
Polishing DetailPolishing Detail
SUS 304 Butterfly ValveSUS 304 Butterfly Valve
Sample ValveSample Valve
200L Bright Beer Tank Inside Polishing Detail SUS 304 Butterfly Valve Sample Valve

200L Bright Beer Tank is often also called serving tank, tax determination tanks or clear beer tank (=CBT), Jacketed Bright Beer Tank (=BBT) or maturation or conditioning tank. Made of stainless food steel DIN 1.4301 (AISI 304). Standardized dimensions and equipment, or according to individual customer requirements. Function:Beer maturation/conditioning/serving/filtered beer receiving. 100% TIG welding with pure argon gas shield, Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner, Insulation: Polyurethane; TH=80mm

VIDEO

FEATURES

  • Made of stainless food steel DIN 1.4301 (AISI 304)
  • Standardized dimensions and equipment, or according to individual customer requirements
  • Interior Shell: SUS304 full welded; TH=4mm
  • Exterior Shell:SUS304 full welded; TH=2.5mm
  • 100% TIG welding with pure argon gas shield
  • Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner
  • Insulation: Polyurethane; TH=80mm
  • Glycol Jacket on side wall
  • Stringent tank leakage test by water and pressured gas
  • Stringent Jacket leakage test by water and pressured gas
  • Flanged manway on top
  • CIP arm with 360° coverage CIP spraying ball
  • Full sanitary sampling valve
  • Mechanical relief valve 2 bar on CIP arm
  • Carbonation port with stone
  • Shockproof pressure gauge on CIP arm
  • Tri clamp discharge arm with butterfly valve
  • Thermowell for high accuracy temperature sensor
  • 3 or 4 pcs completely SUS304 heavy duty legs with leveling pad
  • Sanitary level tube with stainless steel ball valves
  • Complete valves, fittings and all parts

PARAMETERS

Model HG-QJ-200L
Capacity Useful capacity: 200L;Gross capacity: 220L
Material SUS304
Application Restaurant, bar, hotel
Out size Ø500*1500mm
Cooling method Jacket section cooling
Thickness Inner: 3.0mm; External:2.0mm
Outrigger Ø76mm*3
Test pressure 0.37Mpa
Working pressure 0.2Mpa
Heat exchange area 0.15m2
Weight 140kg
