Wine Fermentation Tank

Brewery banner

Wine Fermentation Tank

Wine Fermentation Tank
22
Butterfly valveButterfly valve

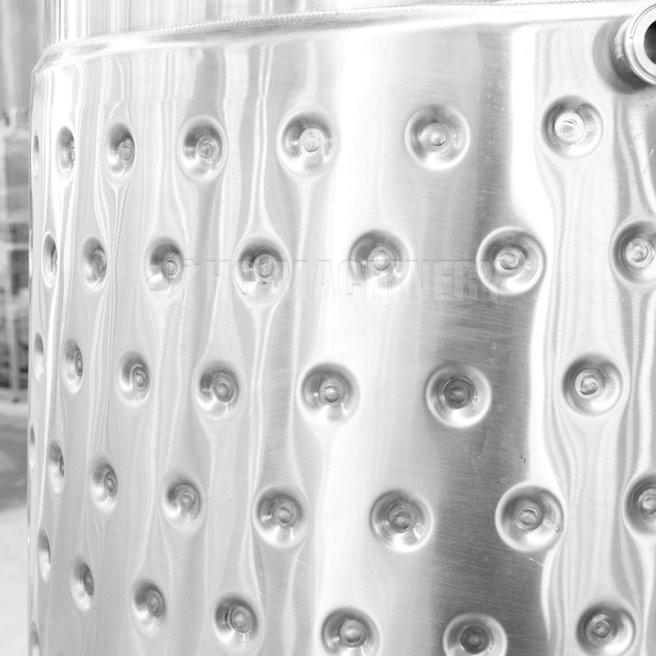

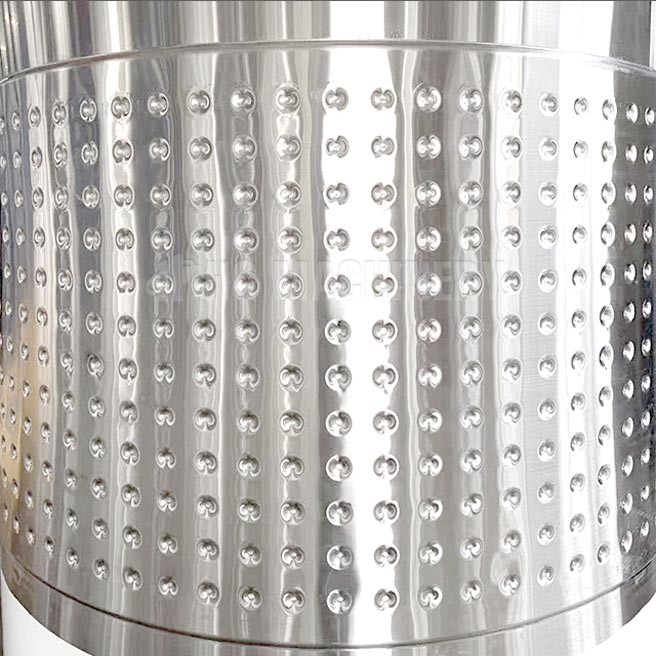

Cooling JacketCooling Jacket

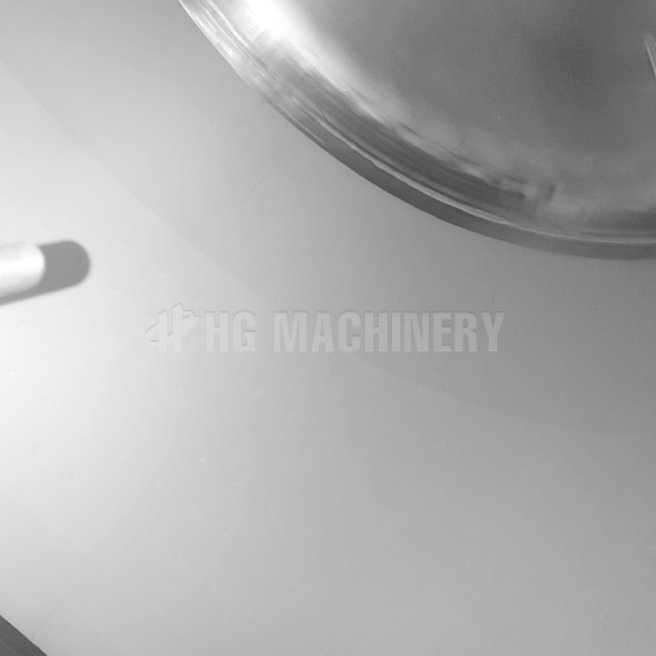

InsideInside

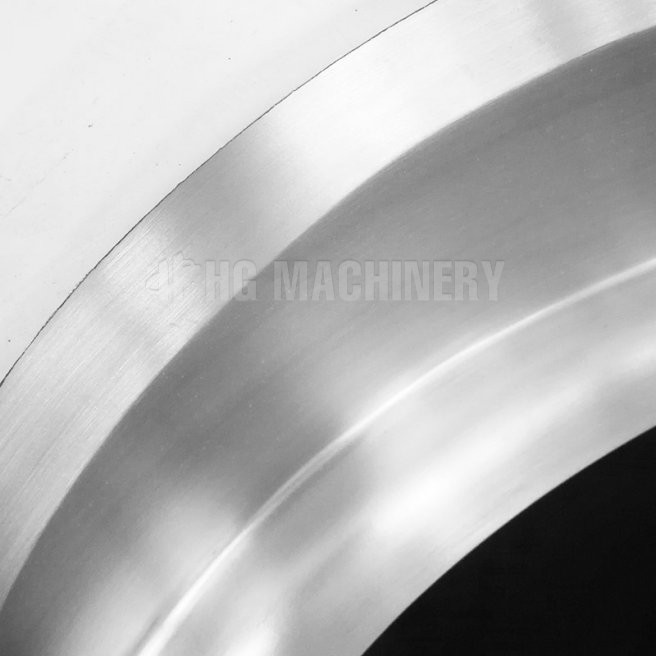

Polishing DetailPolishing Detail

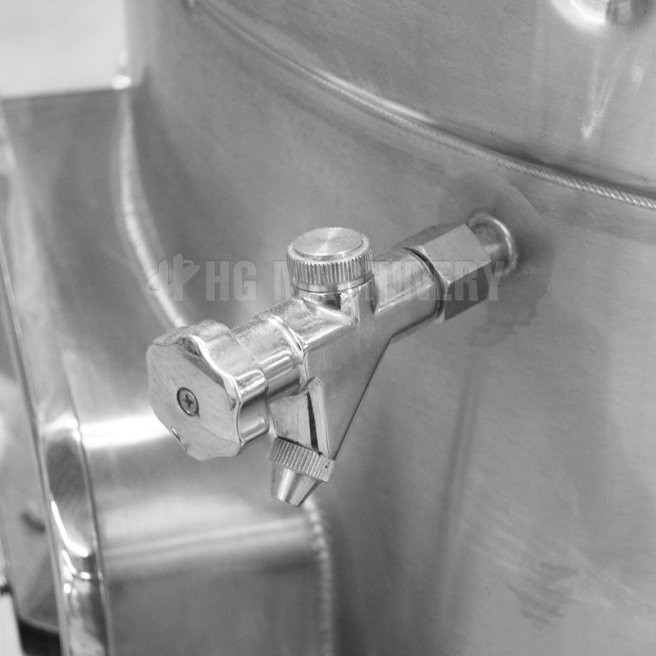

Sample ValveSample Valve

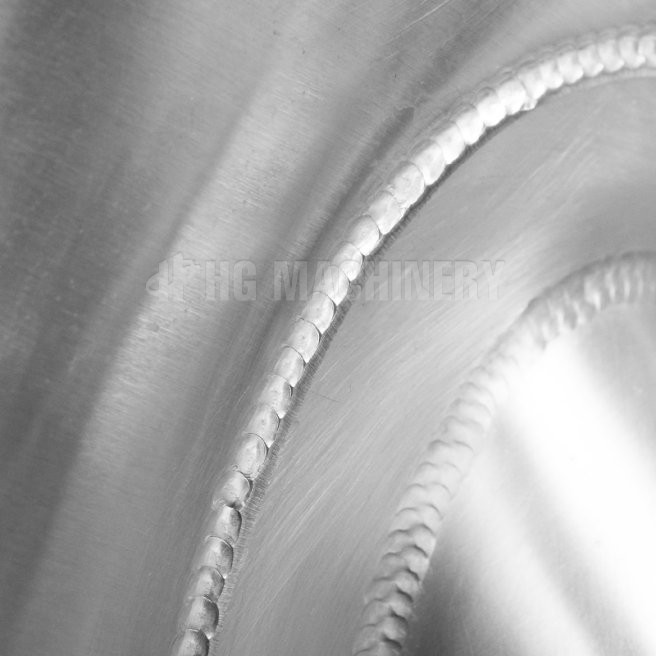

Welding DetailWelding Detail
Wine Fermentation Tank 2 Butterfly valve Cooling Jacket Inside Polishing Detail Sample Valve Welding Detail

Wine Fermentation Tank allow you to ferment and carbonate your cider all in one tank. Specialized ASME-stamped high pressure vessels that are designed to suit your beverage cider fermentation process. All the versions of the tank guarantee the utmost hygiene, reliability, practicality in use, safety and durability. Available in various models and sizes to suit a given customer’s specifications, these tanks are made of AISI 304 and 316 stainless steel, paying great attention to the choice of raw materials and to the quality of their manufacture and assembly.

Request a Quote  Live Chat

VIDEO

FEATURES

  • CIP temperature ratings
  • Custom geometry to fit your process & space
  • Insulation designed for your installation and process
  • Fully welded stainless steel outer sheathing
  • Outdoor design with security & weather protections
  • Ladder and catwalk systems (optional)
  • Under-jacket glycol piping (optional)
  • ASME designed for whatever pressure rating you require
  • Thermowells for temperature monitoring
  • External sight gauges
  • Insulated and fully welded stainless steel outer jacket
  • Construction from 316L/304 stainless steel
  • Polished material and weld finishes
  • Automated temperature control
  • Agitation for product mixing
  • Cylindrical Shell, Cooling jakcet
  • Conical top, Slope bottom
  • Top round manhole, Rectangular manhole at side
  • Glycol water inlet&outlet
  • Pump-over system
  • Filtering grid
  • Thermometer
  • Levelling indicator
  • Breathing valve, Sample valve
  • Drainage outlet
  • Lifting lugsx2, Ladder rack x1

PARAMETERS

Model Dimension (mm) Height (mm) Legs Cooling area (m2)
HG-WF1 Φ920*1500 2180 3 1.4
HG-WF2 Φ1270*1610 2600 3 2.2
HG-WF3 Φ1500*1830 3000 4 3
HG-WF4 Φ1600*2000 3250 4 4
HG-WF5 Φ1600*2440 3650 4 5
HG-WF6 Φ1800*2440 3500 4 5.5
HG-WF8 Φ1820*3050 4650 4 7
HG-WF10 Φ1900*3660 5050 4 8.5
HG-WF12 Φ1900*4270 5750 4 10
HG-WF15 Φ2000*4880 5950 4 12
HG-WF20 Φ2300*4880 6100 4 14
HG-WF25 Φ2600*4880 6050 4 15
HG-WF30 Φ2600*5500 6550 4/6 18

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
