Distillation Equipment

Distillation Equipment
Distillation Equipment

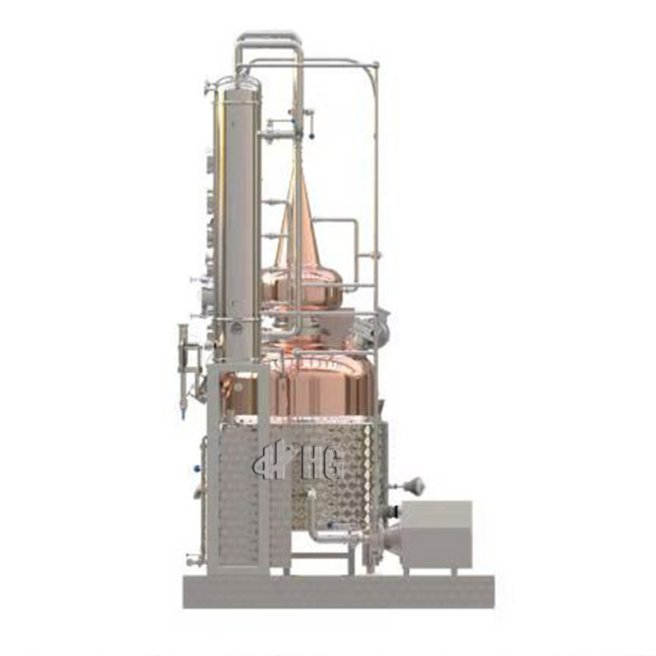

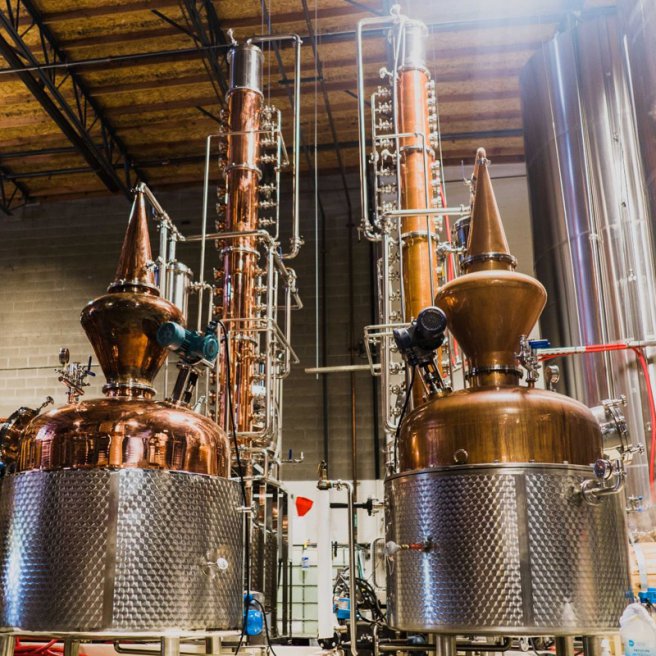

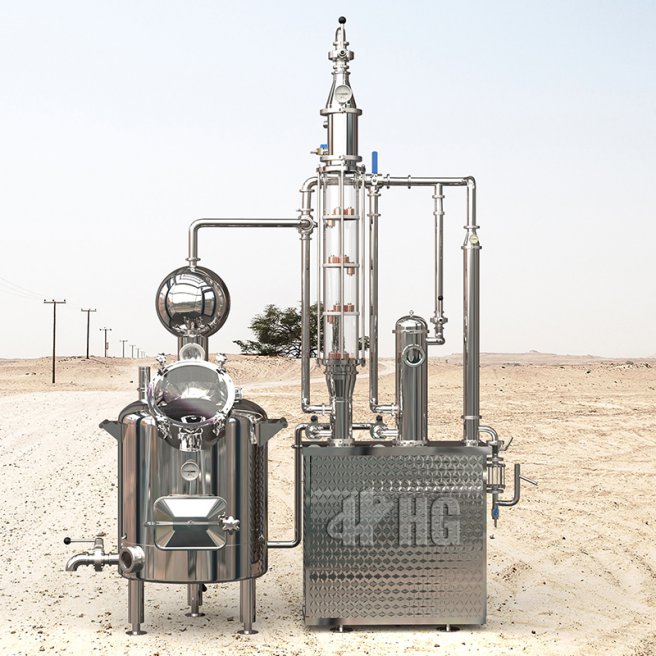

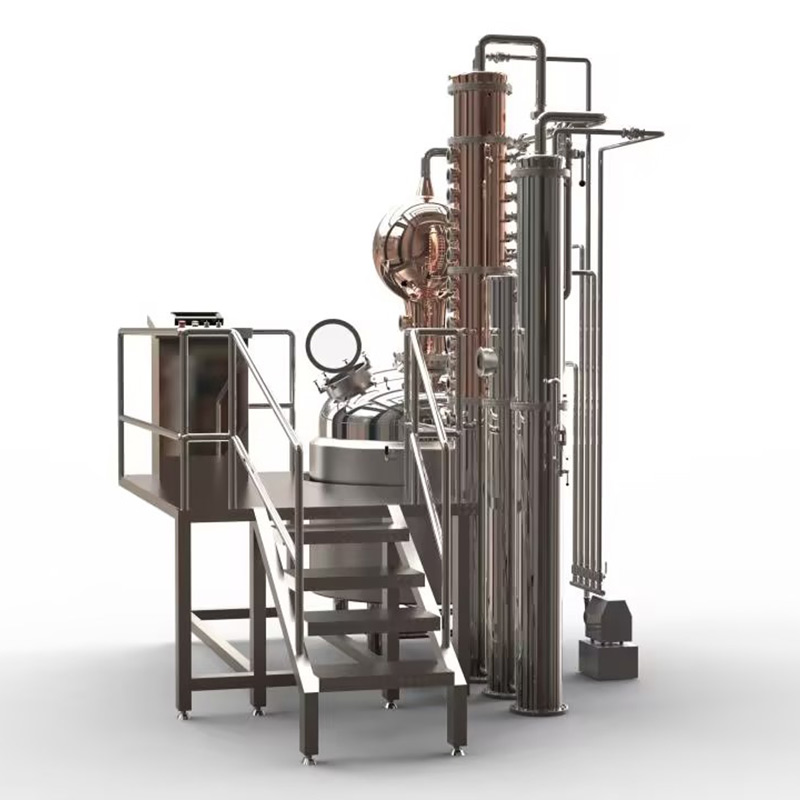

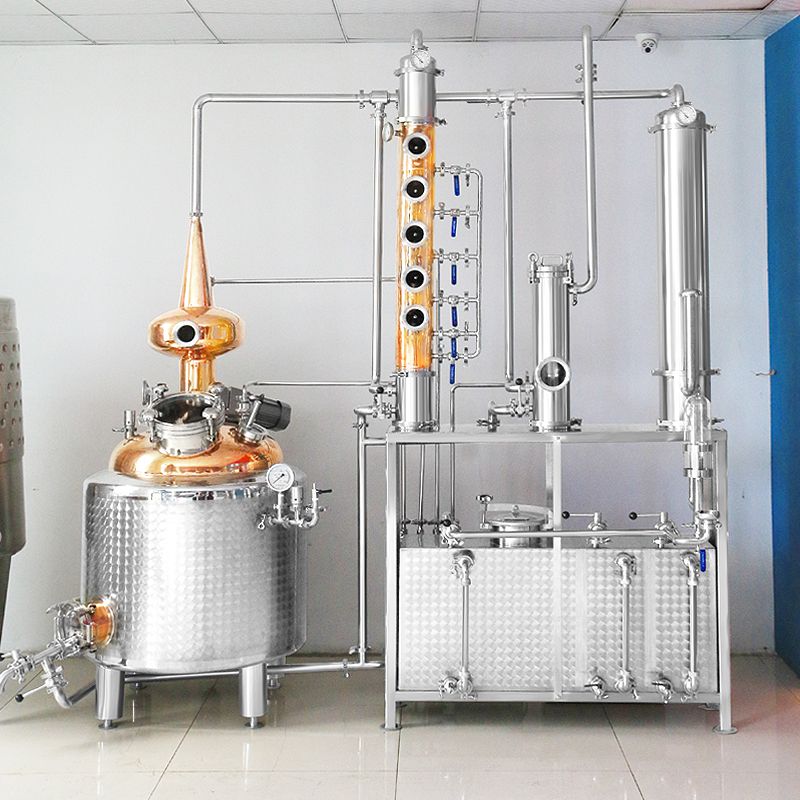

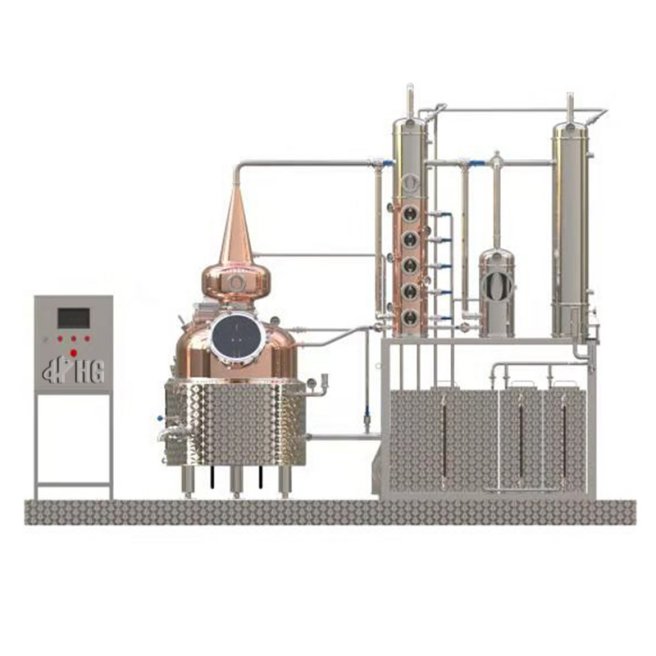

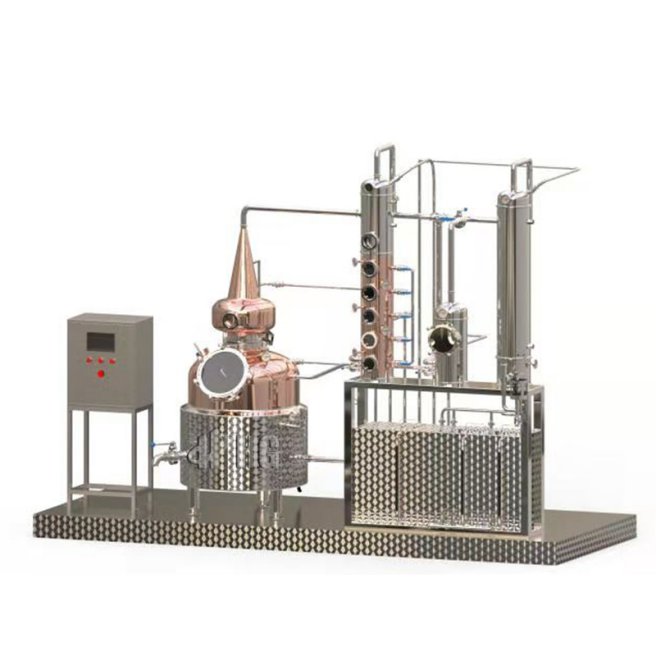

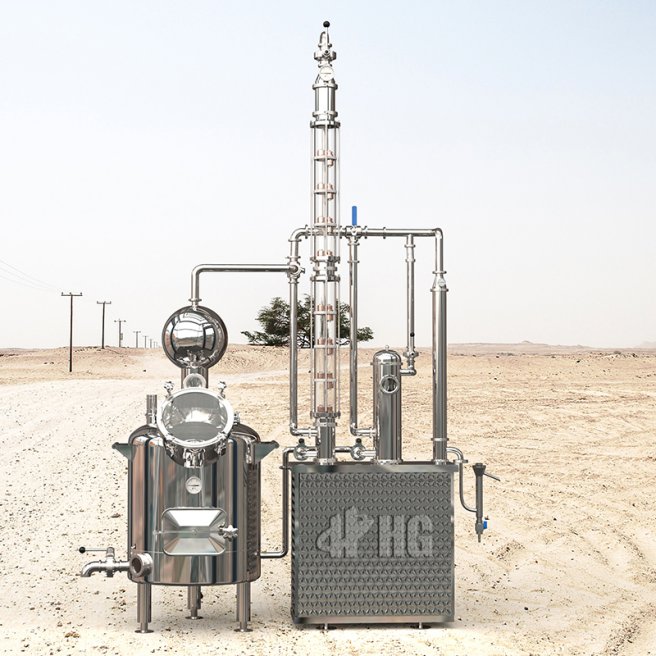

Distillation Equipment The column and plates produce high quality distillates and maintain the characteristic aroma of the raw material. The plant is equipped with all necessary instruments (manometer, thermometer and alcoholmeter) and is known for its user-friendliness.

VIDEO

FEATURES

  • One cavity boiler in stainless steel complete with
  • Copper or stainless steel insulation for cavity boiler
  • Stainless steel manway;
  • Copper stack rectification column
  • Four copper plates;
  • Two Sight glasses located on side of column; one for light and one for viewing
  • Side discharge outlet with valve DN 100, manual operated
  • Explosion proof agitator, (motor and motor starter not included)
  • Manometer and safety gauges for steam jacket
  • Reflux complete with flow meter
  • Copper tube condenser, dephlegmator
  • Stainless steel cooling coil

PARAMETERS

AVERAGE LOAD CAPACITY (BEER) AVERAGE CYCLE TIME AVERAGE ENERGY CONSUMPTION AVERAGE STEAM CONSUMPTION
Liters Gallons Hours Hp/h Kg/s Lbs/h
5000 1315 9 4.0 625 1377.9
40000 1052 8 3.0 500 1102.3
3000 789 7 2.0 375 826.7
2500 658 6.5 2.0 313 690.0
2000 526 6 1.5 250 551.1
1500 395 5.5 1.5 180 396.8
1200 317 4.5 1.0 140 308.6
1000 263 4.5 1.0 120 264.5
700 184 4 1.0 90 198.4
500 131 3.5 1.0 60 132.2
300 78 3 0.7 40 88.1
200 52 2.5 0.7 30 66.1

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
