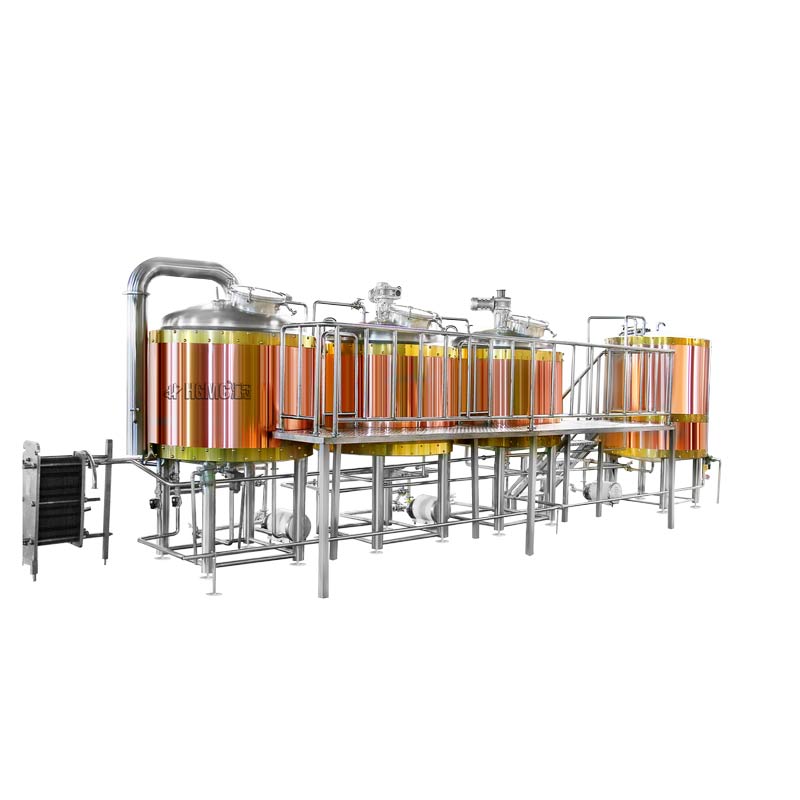

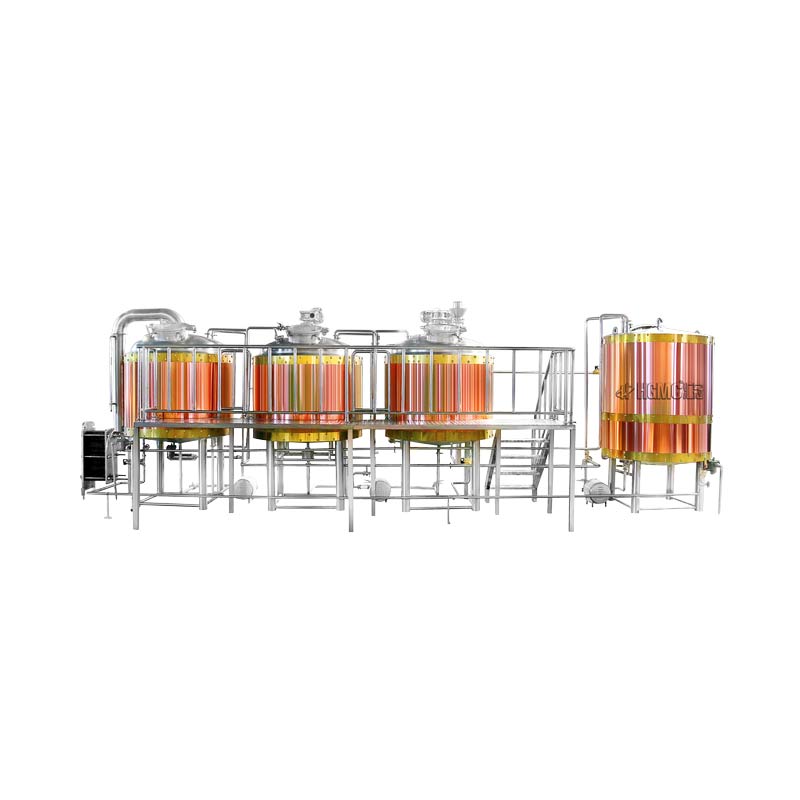

2000L 2 Vessel Copper Beer Brewing Equipment

Brewery banner

2000L 2 Vessel Copper Beer Brewing Equipment

2000L 2 Vessel Copper Beer Brewing Equipment

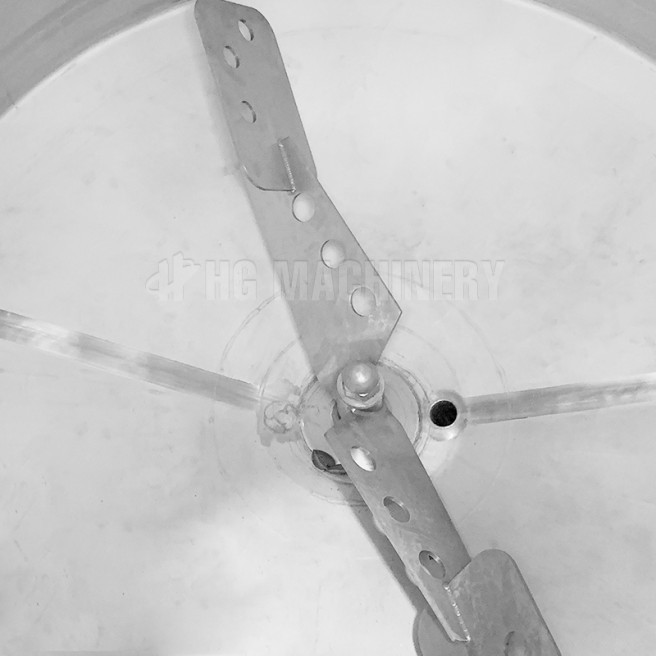

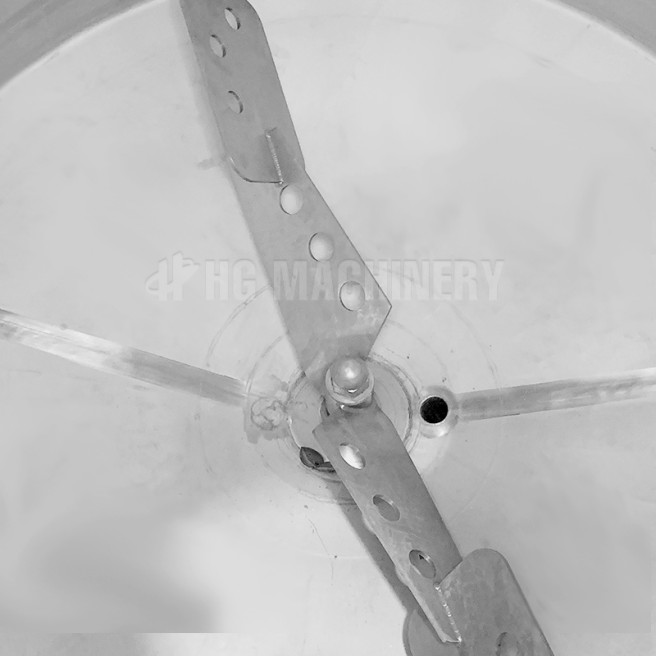

AgitatorAgitator

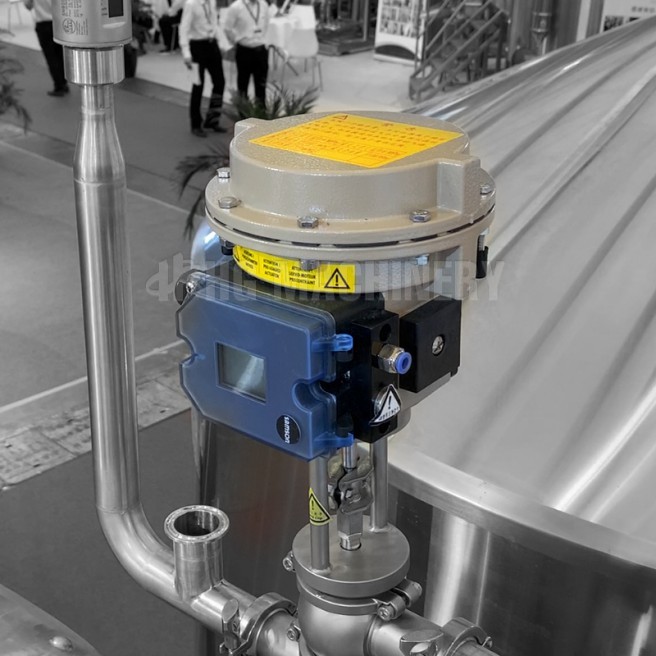

FlowmeterFlowmeter

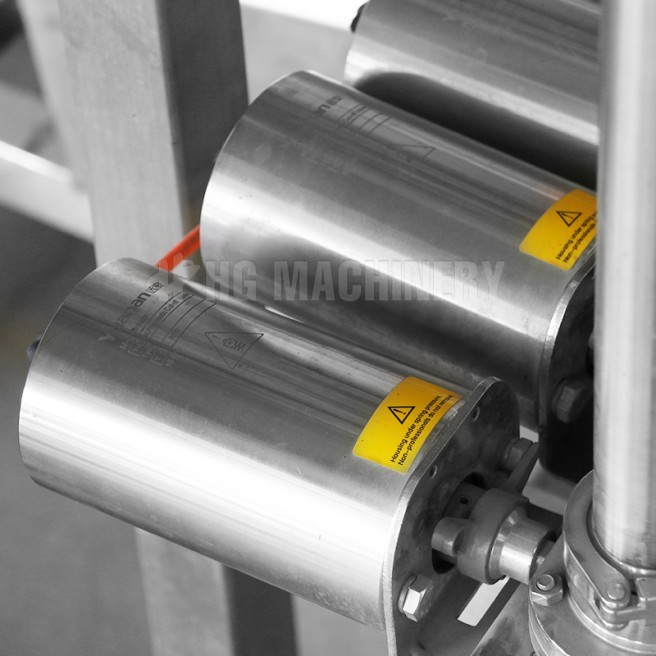

Pneumatic ValvePneumatic Valve

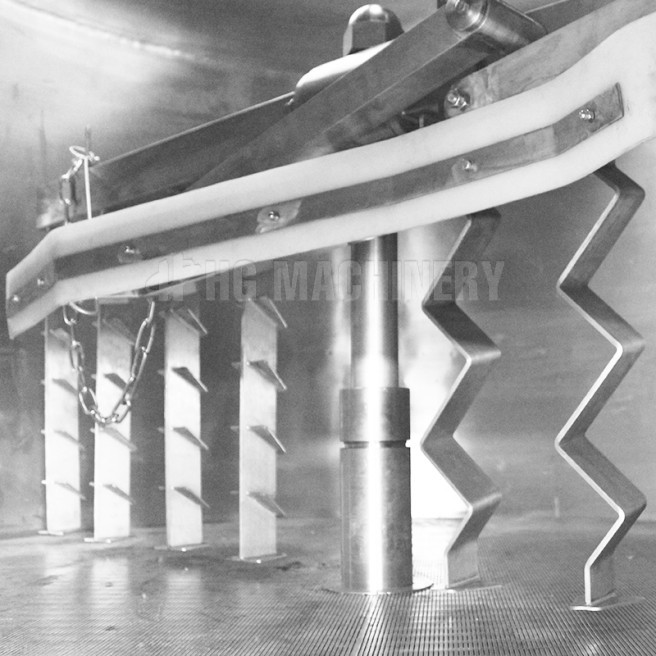

RakerRaker

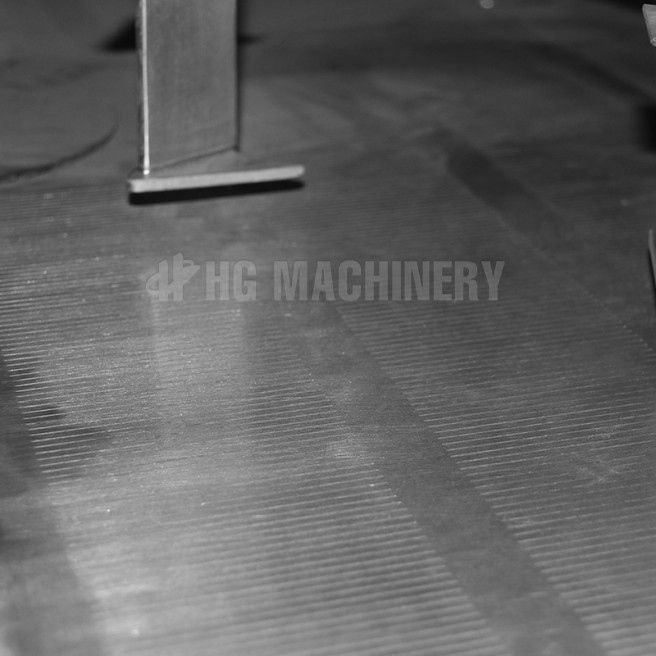

Sieve Plate Sieve Plate

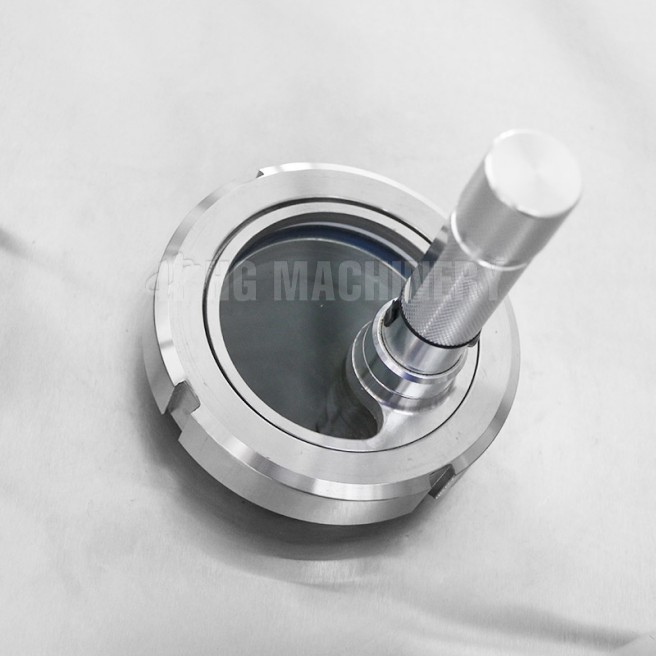

Sight GlassSight Glass

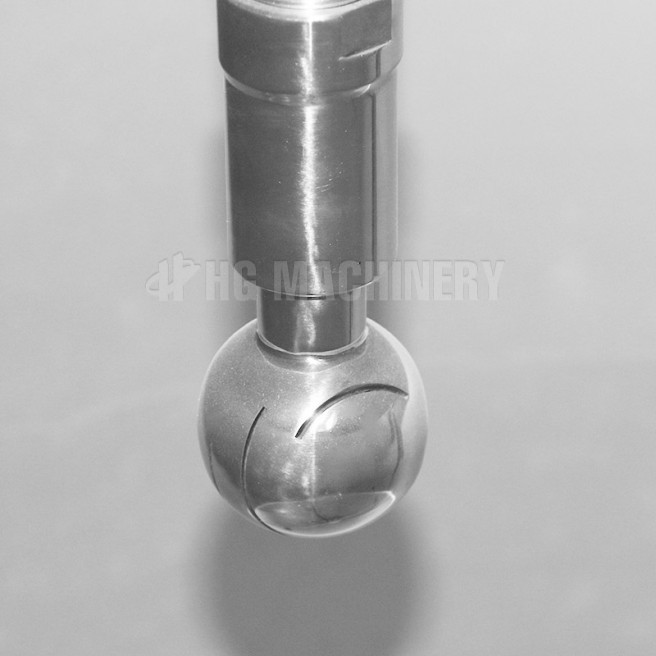

Spray BallSpray Ball
2000L 2 Vessel Copper Beer Brewing Equipment Agitator Flowmeter Pneumatic Valve Raker Sieve Plate Sight Glass Spray Ball

2000L 2 Vessel Copper Beer Brewing Equipment , Copper has the highest heat conductivity, is easy to form and was traditionally used for making the brewing equipment. Copper can be readily soldered, brazed and welded with the proper equipment. Soldering and brazing should be more than adequate for most brewery uses. It's a medium-size and big-size craft brewing equipment intended mainly for restaurants and pubs with their own beer production. But the capacity of bigger models is enough also for industrial brewing equipment with retail sale. Equipped with industrial brewhouse wort machine and modern professional beer production equipment like cylindrical and conical beer fermentors or open fermentation vats, automatic cooling system, cleaning and sanitizing system etc. It is possible to use them to production of all known types of beer. The craft brewing equipment intended for bigger restaurants and industrial brewing companies with retail sale. Main part of the brewery is stainless steel wort brew machine with simple industrial design intended to maximal effective work and high production capacity of the brewhouse.

VIDEO

FEATURES

  • We plan and design complete breweries, all systems can be designed with the client’s input for a defined process;
  • A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);
  • Fully piped and wired, including valves and sensors;
  • Integrated pump system;
  • CIP system: separated CIP for individual tanks to prevent cross product interference;
  • Master brew interface control system (touch screen control panel),
  • Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;
  • Automated lautering, automated water mixing
  • High quality insulation effect: Rock wool thickness: 80mm

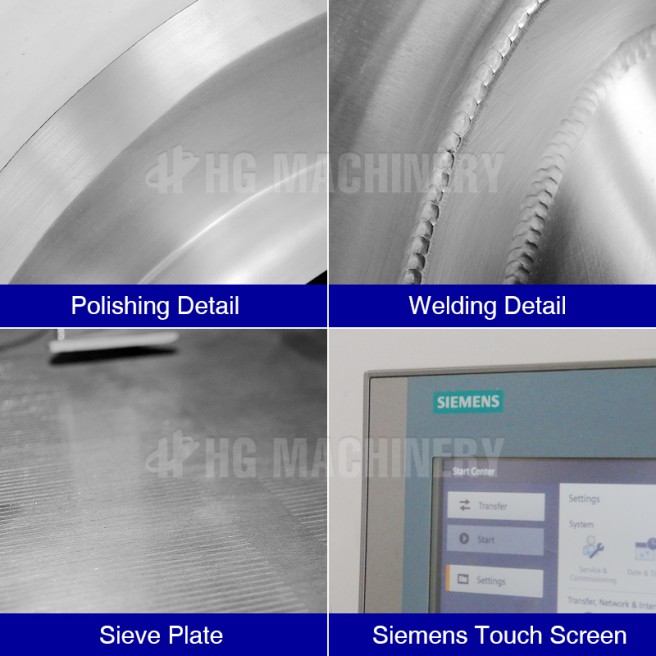

  • Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm
  • World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
  • Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm
  • Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included
  • Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included
  • Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included
  • Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request

PARAMETERS

Model HG-2000C
Capacity 2500L/Batch
Material Copper
Combination method Mash tun, Lauter tun, Kettle/whirlpool tank
Application Restaurants, bars, hotels, brewery
Heating way Electric heating/Steam heating/Direct fire heating
Voltage AC380/220V, 50/60HZ
Power Electric heating:144kw, Steam heaing/Direct fire heating 55KW
Water consumption 4m3/T
Diameter 1960mm
Height 3200m
Floor area 60m2
Degree of automation Semi-automatic/Fully automatic

MODELS & SPECS

Item Production capacity Volume in US Gallon Heating area Tank diameter  Height
HG-50 50L/day 14 US Gallon 0.15m2 550mm 1500mm
HG-100 100L/day 26 US Gallon 0.25m2 650mm 2000mm
HG-200 200L/day 53 US Gallon 0.25m2 910mm 2200mm
HG-300 300L/day 79 US Gallon 0.3m2 910mm 2300mm
HG-500 500L/day 132 US Gallon 0.5m2 1160mm 2400mm
HG-600 600L/day 158 US Gallon 0.6m2 1160mm 2500mm
HG-700 700L/day 185 US Gallon 0.7m2 1260mm 2500mm
HG-800 800L/day 212 US Gallon 0.8m2 1260mm 2500mm
HG-1000 1000L/day 264 US Gallon 1.0m2 1360mm 2800mm
HG-1500 1500L/day 396 US Gallon 1.5m2 1560mm 2900mm
HG-2000 2000L/day 528 US Gallon 2.0m2 1960mm 3150mm
HG-2500 2500L/day 660 US Gallon 2.5m2 1960mm 3200mm
HG-3000 3000L/day 792 US Gallon 3.0m2 2060mm 3800mm
HG-5000 5000L/day 1320 US Gallon 5.0m2 2260mm 4400mm
