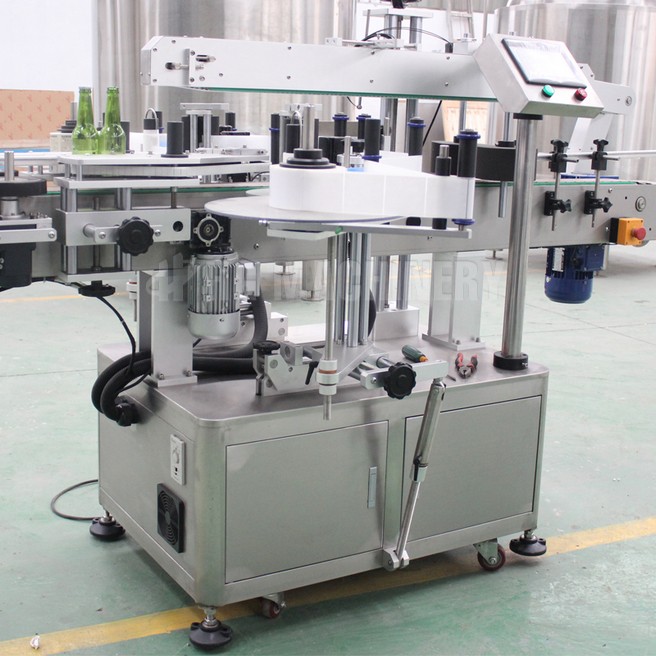

FEATURES
- Widely used in commodity ,such as round bottles, cans, jars, tube and etc.
- Adopt world famous brand PLC control +touch screen control system technology.
- Easy operation with reasonable price.
- The ribbon date printer and collecting turntable is optional.
- Best after-sale service, with one-year warranty, life-long maintenance.
PARAMETERS
| Size | 2000*800*1300mm |
| weight | 200kg |
| Output speed | 30-100pcs/min |
| Labels details | (L)25mm-300mm, (W) 20-90mm |
| Bottles details | (D)30-100mm ,(H)30-200mm |
| Labeling accuracy | ±1mm (Depend on bottles and labels) |
| Label roll inside/outside diameter | 76mm / 300mm |
| Power supply | 220V 0.75KW 50/60Hz |
| Name | Brand |
| PLC | MITSUBISHI |
| Touch screen | WEINVIEW |
| Inverter | DANFOSS |
| Servo motor | DELTA |
| Switch | DELTA |
| DELTA | OMRON |
| Label Sensor | Leuze |
